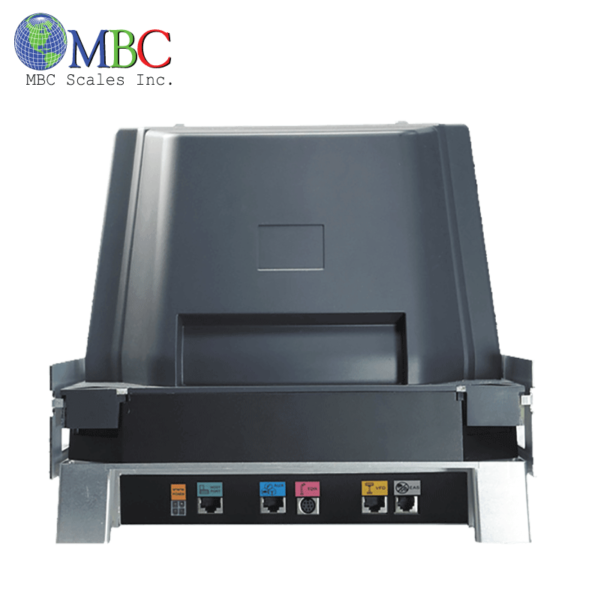

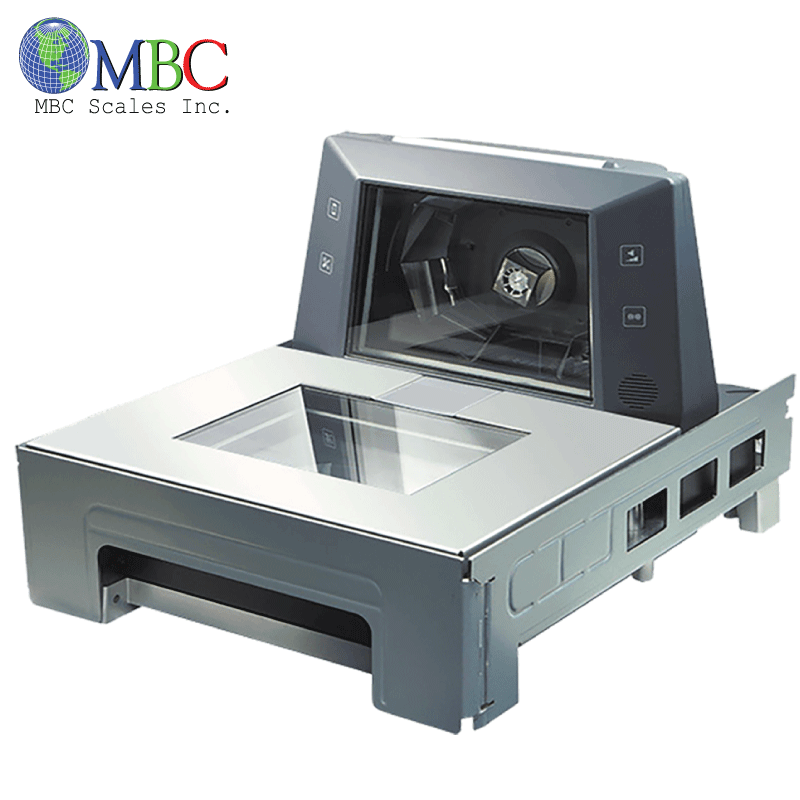

Built with brilliant accuracy and wide scanning angles, K-6910 bi-optic scanner eliminates traffics in high volume retail environments.
Featuring an outstanding one-pass scanning ability, cashiers can scan items without constantly readjusting the scanner positions.
By moving the checkout line at a much higher speed, K-6910 can help you achieve a new elevated level of productivity and efficiency.
• First class bi-optical technology
• Excellent first read rate
• Visual diagnostic LED
• Easy on-site configuration and upgrade ability
Light Source : 2 × dual 650 nm visible laser diodes (VLD)
Depth of Field : Horizontal (13 mil): 0 – 180 mm Vertical (13 mil): 0 – 250 mm (Note: DOF may vary depending on environment condition and barcode quality.)
Min. Bar Width : Horizontal 4 mil; vertical 5 mil
Indicator : Two-color LED (blue & red); 2 LED DOT matrix (5×7)
Print Contrast Ratio (Minimum) : 45% @UPC/EAN 100%
Programmable Operation : Programmable tone & beep time
Scan Lines : Horizontal 40 lines & vertical 40 lines
Scan Pattern : Horizontal 5 & vertical 5 directions Scan RateHorizontal 80 & vertical 80 scans per second (single-line);Horizontal 3,200 & vertical 3,200 scans per second(omni-directional)
System Interface : RS-232, USB HID, USB Virtual COM, IBM468X, keyboard, OPOS USB;Auxiliary powered RS-232 port; EAS port; SD slotRemote Display: VFD 20*2 Characters (optional)
